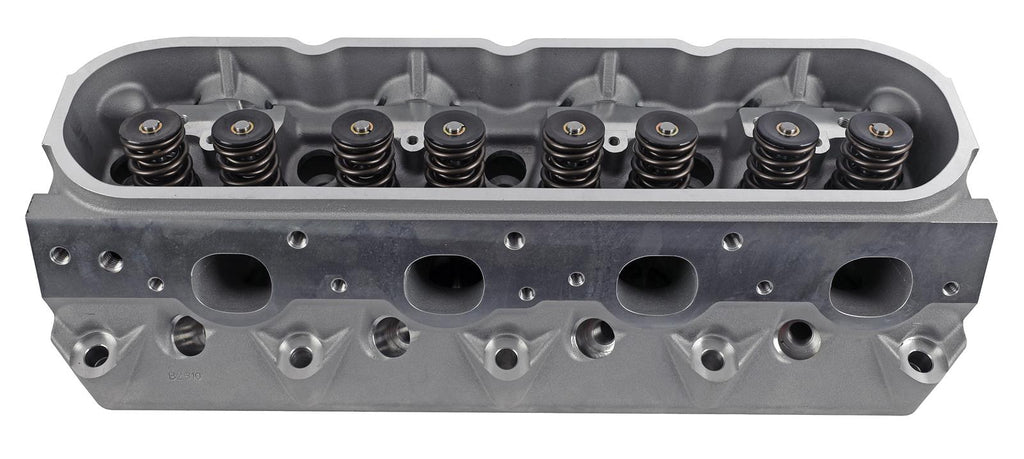

AFR 210cc Enforcer As-Cast Cathedral Heads, LS1/LS2 Applications

: AFR-1501

: In stock

: Cylinder Heads

: Airflow Research

Regular price $749.99

Shipping policy

AFR 210cc Enforcer As-Cast Cathedral Heads, LS1/LS2 Applications (Sold Individually)

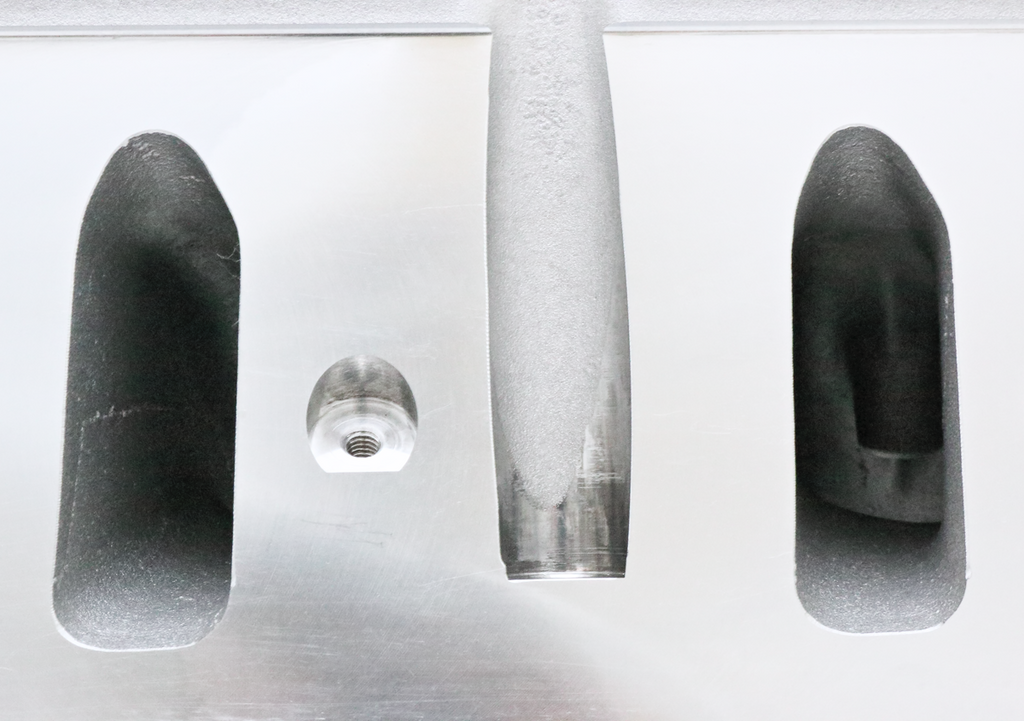

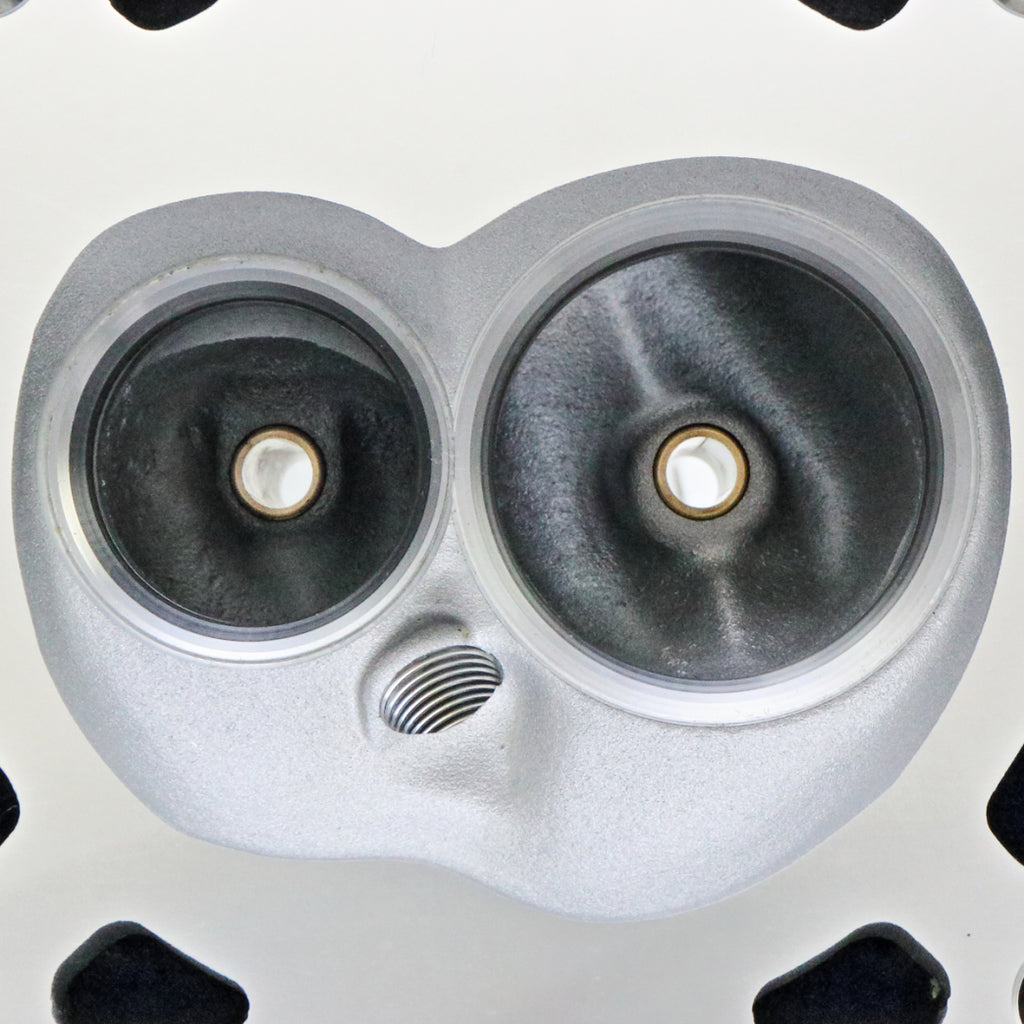

AFR 210cc LS1/LS2/LS6 Enforcer cylinder heads are available in standard and small bore applications. They feature Permanent Mold "As-Cast" Technology surfaces on the intake runners, exhaust runners, and combustion chambers that allow for extremely accurate and repeatable port location/performance. The budget-friendly heads are perfect for your OEM engine operating below 6,300 rpm. Fully assembled Enforcer models include the identical components found in AFR's higher end CNC-ported cylinder heads—such as PAC Racing springs, Viton® valve seals, machined bead valve locks (not stamped), hardened spring seats, and one-piece 8mm 21 4N stainless steel valves.

210cc Street Head Flow Chart
  .200 .300 .400 .500 .550 .600
Int 148 209 253 265 268 268
Exh 105 150 180 199 204 207

Test conducted at 28" of water (pressure) on Superflow 1020
Bore Size: 4.060", 3/4" radius plate exhaust, 1 3/4" curved pipe


Specifications & Features:
Material
A356 Aluminum
Intake Port Volume
210cc
Intake Port Dimension
3.190"H x 1.015"W x5/16 top 3/8" bottom
Intake Port Location
Stock
Exhaust Port Volume
82cc
Exhaust Port Dimension
1.400" H x 1.660" W
Exhaust Port Location
Stock
Combustion Chamber Size
64cc
Valve Angle
15°
Valve Spring Pocket Diameter
1.500" O.D
Max Valve Spring Pocket Machining
1.500" O.D
Warning:Do not machine spring pad any deeper.
Deck Thickness
0.425"
Minimum Bore Diameter
3.900"
Flat Mill
.006" per cc 58cc Maximum
Spark Plug Dimensions
14mm x .750" w/Tapered seat
