Chevrolet Camaro ZL1/Cadillac CTS-V LSA 6.2L V8 Magnum 2650 Supercharger System

Designed specifically for the LSA-powered second-generation Cadillac CTS-V and fifth-generation Chevrolet Camaro ZL1, the all-new Magnum Performance Series TVS2650 sets the gold standard for performance. Built from a clean sheet design, taking the best elements from successful Radix, Heartbeat and Magnum DI systems, the all-new Magnum PI pushes the new design to the limit. No excuses, no compromises. A supercharger system designed for volume, maximum airflow, unrestricted inlets, optimized charge air cooler; a system capable of big boost and horsepower while being efficient across all engine speeds.

Our Cadillac CTS-V and Chevrolet Camaro ZL1 supercharger system features an Eaton TVS2650 high-helix rotor group. The TVS2650 rotor group is OEM-tested and validated and has been proven to be the perfect foundation for the Magnum Performance Series. Around that rotor group, our Magnuson engineers worked hard to develop an all-new high-speed airflow distribution system. Leveraging our patented Dynamic Flow Technology (DFT), each supercharger housing features optimized inlet porting and a large unrestricted discharge port for maximum flow and distribution across intercoolers.

The intercooler, a custom fabricated design, allows for ultra-efficient post-supercharger air cooling. Placed atop the TVS2650 rotor group, the Magnum intercooler system features an all-new upper plenum, free from the constraints of the standard LSA style footprint, for a true “no-compromise” design. The large lid also features two dual coolant inlet and outlet ports to deliver ample coolant flow to the intercooler for lower air temps under any condition and any level of boost.  The Magnum Performance Series TVS2650 system includes specific intercooler hoses, fittings, and brackets as well as complete installation instructions required for both of these vehicle applications.

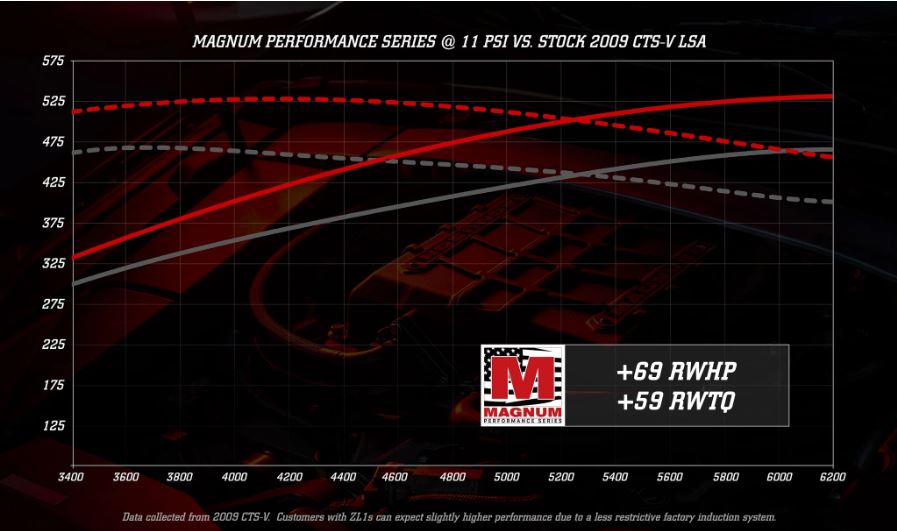

In testing, this all-new Magnum system added over 69 horsepower and more than 59 lb-ft of torque to a stock 2009 CTS-V at 11 pounds of boost, with huge improvements across the entire RPM band. That’s a horsepower performance increase of more than 15% with a 13% increase in torque.

Of course, we knew the all-new Magnum had to be capable of big horsepower, but what we didn’t want to do was compromise anything for those running on stock powertrains and stock vehicles. And that’s really the beauty of the 2650 and our patented DFT. That means that not only does the Magnum system perform flawlessly on either of these two applications in stock form, but it also leaves room for more boost, more power, and even more fun down the line. And because of that, we can offer you, our Magnum customer, a 3-year, 36,000-mile warranty.

• Adds over 69 horsepower and 59 lb-ft of torque to a stock 2009 Cadillac CTS-V at 11psi, with huge improvements across the entire RPM band
• Magnuson Magnum TVS2650 Supercharger System designed specifically for the second-generation Cadillac CTS-V and fifth-generation Chevrolet Camaro ZL1 (LSA)
• Eaton TVS2650 high-helix rotor technology provides optimum efficiency across the entire rpm band

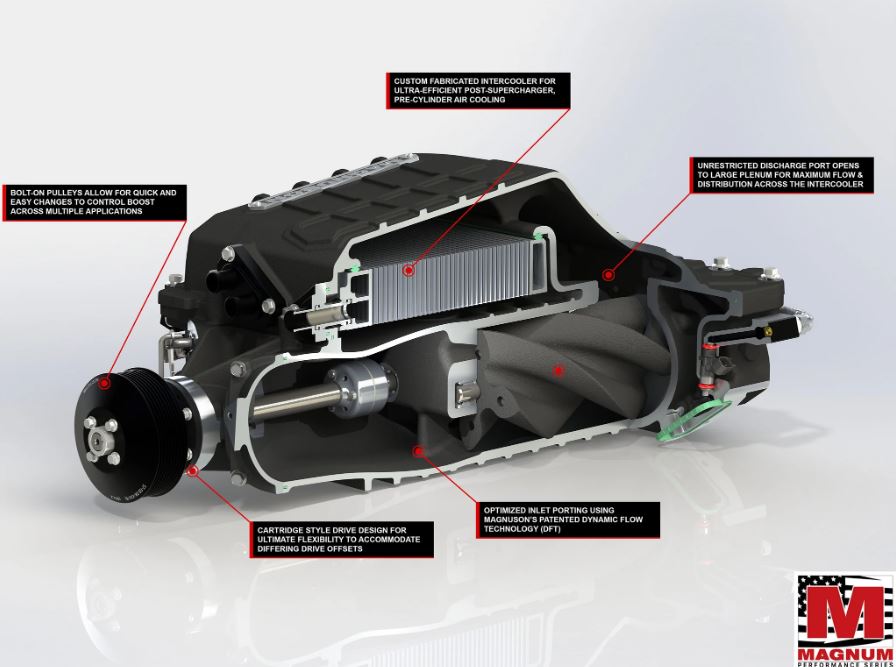

• Optimized inlet porting using Magnuson’s patented dynamic flow technology (DFT)
• Unrestricted discharge port opens to large plenum for maximum flow & distribution across the intercooler

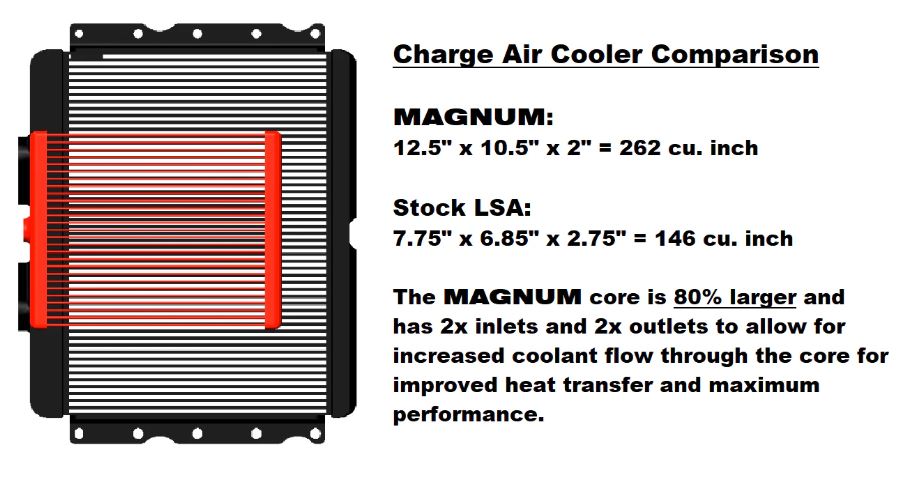

• Custom fabricated intercooler for ultra-efficient post-supercharger air cooling
• Bolt-on pulleys allow for quick and easy changes to control boost across multiple applications
• Cartridge style drive design for ultimate flexibility to accommodate differing drive offsets

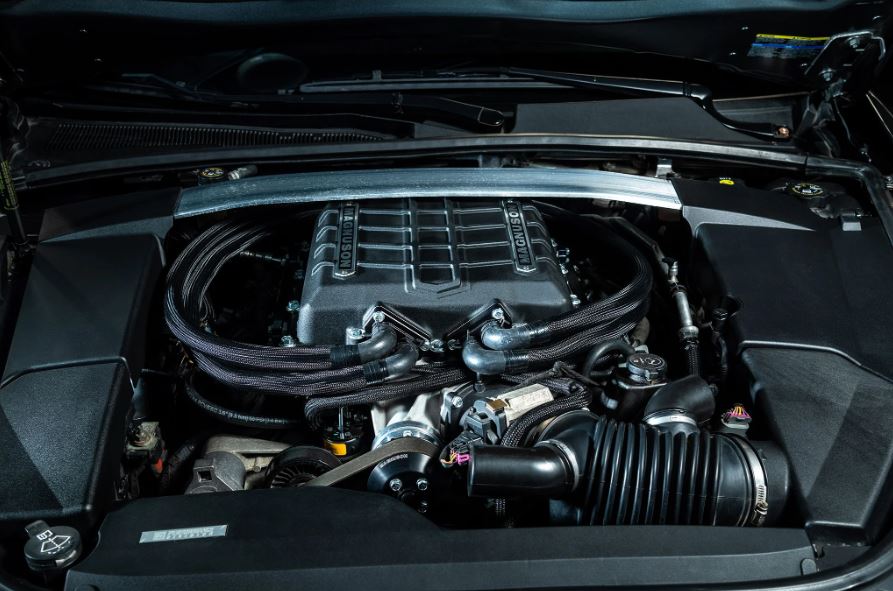

• Designed to fit under the stock hoods of the CTS-V and Camaro ZL1
• CNC-machined ports for optimized airflow into engine cylinders.
• Vacuum bypass system with instantaneous boost response designed to unload supercharger at engine idle and part-throttle for improved fuel economy. Intercooled bypass air is recirculated through the supercharger for rapid cooldown and ultimate performance.
• Proven maintenance-free supercharger technology. No added complexity of external supercharger oil cooler/heaters for extreme climates.
• Includes handheld tuner device, calibration, and detailed step by step instructions for a seamless installation experience.
• Standard 3-year/36,000-mile limited Supercharger System Warranty.
