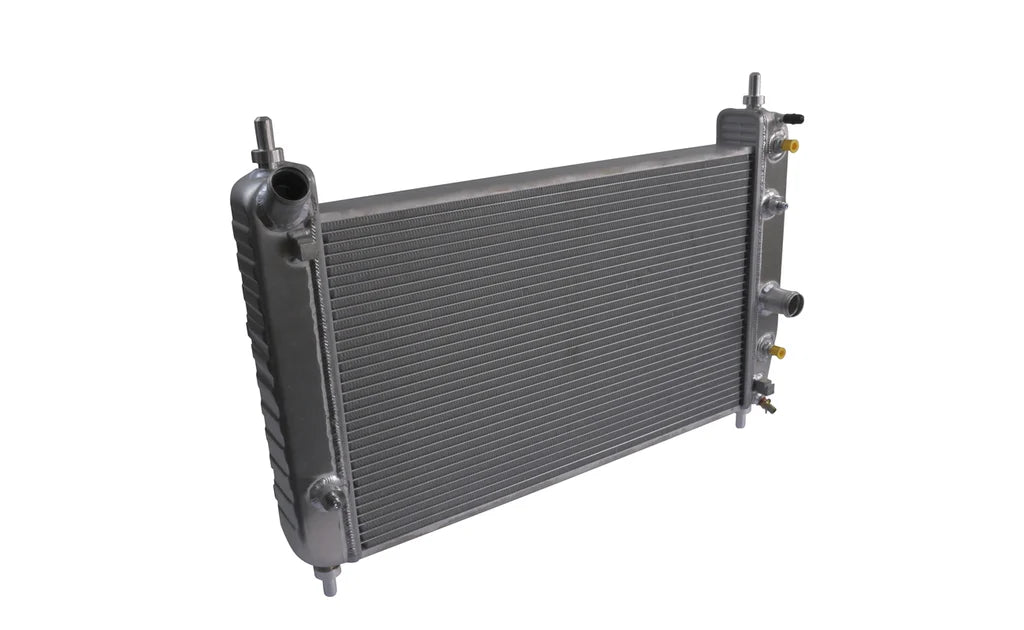

Dewitts "Short" Aluminum Radiators, 2005-2013 C6 Corvette (Forced Induction)

Dewitts "Short" Aluminum Radiators, 2005-2013 C6 Corvette (Forced Induction)

SKU: DEW-32-1139125M

Availability: In stock

Product type: Radiators

Vendor: DeWitts

Regular price $989.99

32-1139105M

32-1139105A

32-1139105B

32-1139105E

32-1139109Z

Tags:

Dewitts "Short" Supercharger C6 Radiators

Shorter overall core height provides extra clearance for supercharger installations
No need to space radiator core support down for supercharger induction plumbing
Complete aluminum radiator assembly with no plastic end tanks or rubber gaskets
Two core radiator design with dual 1-inch-wide core tubes for maximum cooling
Press formed end tanks fully welded to core with no gaskets or epoxy construction
1.38" factory-sized cooling hose inlet and outlet connections to use stock hoses
Direct Fit® upgrade means just that, with no modifications needed to your Corvette
Radiators are assembled in the U.S.A. with a lifetime warranty
2-1/4-inch-thick core increases coolant capacity by one gallon without fitment issues
Serpentine cooling fins deliver optimum airflow across core tubes for cooling
Built-in 7-plate engine and transmission oil coolers on applicable models
Optional 11-inch dual electric cooling fan package with 2,780 cfm airflow available
Controlled atmosphere furnace brazed core with TIG welded end tanks
Factory-style quick connect fittings on automatic transmission cooler equipped models

DEWITTS RADIATOR APPLICATION GUIDE:

32-1139125M (Pro Series Direct Fit® short, natural finish, dual 1-inch core, no cooler)

Base model C6 with manual transmission (non-Z51 models)

32-1139125A (Pro Series Direct Fit® short, natural finish, dual 1-inch core, TOC)

All C6 Z06 models (Except 2012 model year with Z07 option)

All C6 with automatic transmission

All dry sump engine models (Grand Sport, Z06, ZR1)

32-1139125B (Pro Series Direct Fit® short, natural finish, dual 1-inch core, EOC, TOC)

2005-2006 with Z51 option

2007-2009 wet sump engines

32-1139125E (Pro Series Direct Fit® short, natural finish, dual 1-inch core, EOC)

Includes 7-plate internal engine oil cooler for C6 models that didn’t have an engine oil cooler from the factory (oil cooler ports are 3/4-16 SAE straight thread O-ring seal)

32-1139125Z (Pro Series Direct Fit®, natural finish, dual 1-inch core, oil cooler coolant return fitting)

2013 Corvette Z06, Z51, and Grand Sports with engine-mounted cooler

Note:

EOC: Engine Oil Cooler

TOC: Transmission Oil Cooler (used in Z06 models for differential cooler)
